Custom  relay power on delay module.

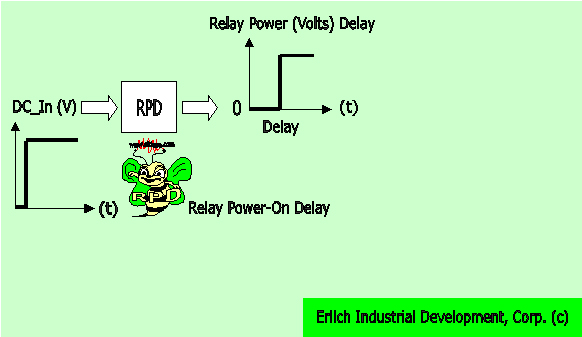

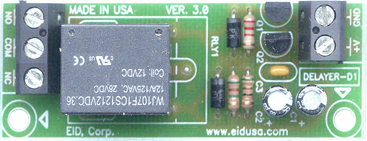

The DELAYER-D1 board is designed to delay relay switching for applications such as air-condition, pump or motor on delays. If used properly, it will eliminate the need for expensive industrial power switch, which would otherwise be needed to carry out the same task.

DELAYER-D1 is easy to install, setup and operate. If you want to  professionally power your HVAC motors, DELAYER-D1 offers the features you need. Mounted easily via two 0.125" mounting holes. and easily connected via Terminal Blocks.

The board is designed to operate from 9 to 12VDC signal or 12V Battery.

DELAYER-D1 Features

• Up to custom 6 Second delay.

• SPDT relay.

• Generally powered from any 9 to 12V DC power source or signal.

• Also, designed to operate from 12VDC car battery

Specifications

• Input voltage                           9-12V DC

• Relative Output voltage stability  +/-3%

• Relay Output current                 Up to 12A at 110VAC/60HZ.

• PCB material                             FR4

• Max power consumption             0.5W

• Storage temperature                 40 - 70   [F]

• Operating temperature               32 - 140 [F] (0 to 60°C) @ 95% RH

• Low board DC voltage                12[V] max

• Manufactured                           100% in USA

Pricing

* Prices, P#, SKU# and colors are subject to change without notice.

DELAYER-D1 Relay Power on delay interface board

EID-DELAYER-D1-XX12V

$28.95

  ^•
