CONVERTER – 420VX-24X - current to voltage converter (transducer) board with DIN-RAIL mounting option.



The CONVERTER-420VX-24X board is designed to perform industrial standard precision current to voltage linear conversion (transducer). If used properly, it will eliminate the need for an expensive board, which would otherwise be needed to carry out the same tasks.



The CONVERTER-420VX-24X  is easy to install, setup and operate. If you want to do professional remote linear current measurement related functions, The CONVERTER-420VX-24X offers the features you need. It can be mounted easily via four 0.125" mounting holes utilizing 4-40 screws.



Simply connect the board to 24V AC or DC Power supply, connect your current source 4-20mA to the differential input and our board will convert it to linear voltages (see tables for different output ranges).



The current to voltage transducer module CONVERTER-420VX-24X, converts and conditions 4-20mA signals to DC voltage.



The CONVERTER-420VX-24X transducer is typically used to convert currents 4-20mA to a stable constant-voltage source. A precision instrumentation amplifier and filter combination provide an accurate, conditioned 0 to 5V or 0 to 10V DC output from a 4-20mA current input.



Other input current are available:



1 to 5mA, 10 to 50mA and 20 to 100mA





CONVERTER – 420VX-24X, precision Voltage-to-Current transducer board is an accurate, linear, and an efficient way to convert current standards 4 to 20mA, 0 to 20mA signals to industrial standards voltages:

Model A, 0V to 5V, 0V to 10V. Model B, 0V to -5 or 0V to -2.5V. Model C, 0V to 1V or 0V to 2V. Model D, 0V to -1V or 0V to -2V. Model E, 0V to 3V or 0V to 3.3V. Model F, 0V to -3V, 0V to -3.3V. Model G, -2.5V to 2.5V, -5V to 5V. Model H, 2.5V to -2.5V, 5V to -5V. Model I, -0.5V to 0.5V, -1V to 1V. Model J, 0.5V to -0.5V, -1V to 1V or Model X, 0V to 4.6V or 0V to 6.4V.

The board come standard with SPAN and ZERO adjustments. And power of 24V DC or 24VAC.

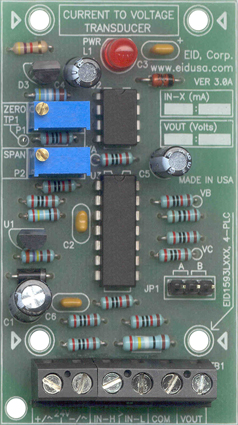

Precision Current-to-Voltage Converter/Transmitter

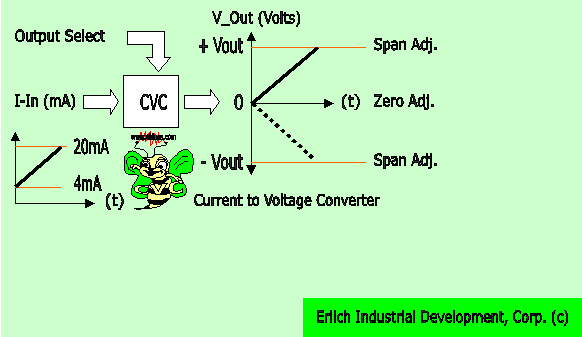

Precise calibration with simple SPAN and ZERO adjustments:



1. Power input 24VDC or 24VAC

2. Current differential input 4-20mA (Other input are available: 1-5mA, 10-50mA and 20-  100mA)

3. Voltage Output (See above tables)

4. LED Power Indicator

5. Span calibration via multi-turn trimmer adjustment.

6. Zero calibration via multi-turn trimmer adjustment.

7. Output configurations:

Model A:



Input (mA)

Output (VDC)

JP1

4 to 20

0 to 5

A

4 to 20

0 to 10

B



Model B:



Input (mA)

Output (VDC)

JP1

4 to 20

0 to -5

A

4 to 20

0 to -2.5

B



Model C:



Input (mA)

Output (VDC)

JP1

4 to 20

0 to 1

A

4 to 20

0 to 2

B



Model D:



Input (mA)

Output (VDC)

JP1

4 to 20

0 to -1

A

4 to 20

0 to -2

B



Model E:



Input (mA)

Output (VDC)

JP1

4 to 20

0 to 3

A

4 to 20

0 to 3.3

B



Model F:



Input (mA)

Output (VDC)

JP1

4 to 20

0 to -3

A

4 to 20

0 to -3.3

B



Model G:



Input (mA)

Output (VDC)

JP1

4 to 20

-2.5 to 2.5

A

4 to 20

-5 to 5

B



Model H:



Input (mA)

Output (VDC)

JP1

4 to 20

2.5 to -2.5

A

4 to 20

5 to -5

B



Model I:



Input (mA)

Output (VDC)

JP1

4 to 20

-0.5 to 0.5

A

4 to 20

-1 to 1

B



Model J:



Input (mA)

Output (VDC)

JP1

4 to 20

0.5 to -0.5

A

4 to 20

-1 to 1

B



Model X:



Input (mA)

Output (VDC)

JP1

4 to 20

0 to 4.6

A

4 to 20

0 to 6.4

B






Mounting Option

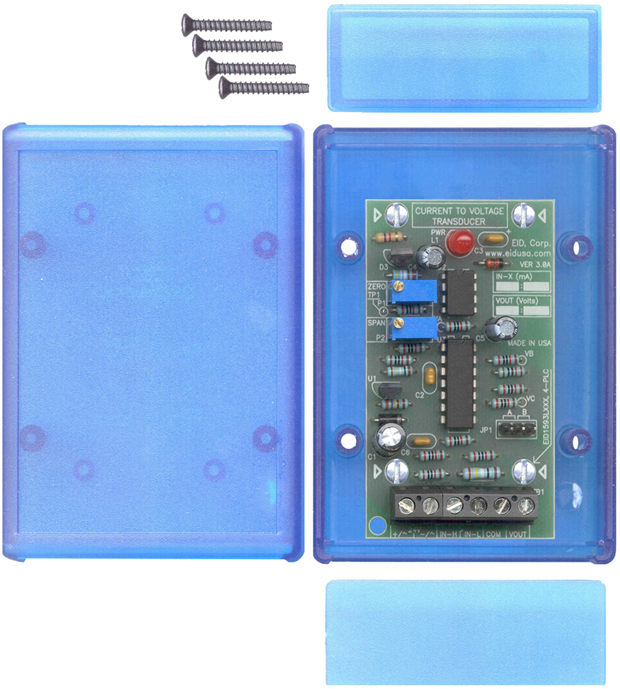

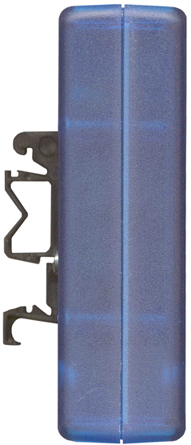

Board, shown above mounted in plastic enclosure (EID-1593 series enclosure) with Din-Rail-clip (optional).



Note:



Plastic enclosure and Din-Rail-clip are sold separately (for demonstration only).






CONVERTER-420VX-24X Features



  • Dual equal outputs

  • Output Zero calibration via multi-turn trimmer adjustment.

  • Output Span calibration via multi-turn trimmer adjustment.

  • Power via 24V DC pr AC

  • Converts 4-20mA analog current to voltages

  • Can be customized to accommodate your output voltage requirement.

  • Industrial Standard input of 4-20mA makes the CONVERTER ideal for remote sensing applications.

  • Linear voltage output.

  • Output voltage rated up to 10VDC

Specifications

  • Input current                            4-20 mA  (optional 1-5 mA, 10-50 mA and 20-100 mA)

  • Input Impedance                       250 Ohms

  • Output voltage Model A              0 to 5V, 0 to 10V

  • Output voltage Model B              0 to -5V, 0 to -2.5V

  • Output voltage Model C              0 to 1V, 0 to 2V

  • Output voltage Model D              0 to -1V, 0 to -2V

  • Output voltage Model E              0 to 3V, 0 to 3.3V

  • Output voltage Model F              0 to -3V, 0 to 3.3V

  • Output voltage Model G              -2.5 to 2.5V, -5 to 5V

  • Output voltage Model H              2.5 to -2.5V, 5 to -5V

  • Output voltage Model I              -0.5 to 0.5V, -1 to 1V

  • Output voltage Model J              0.5 to -0.5V, 1 to -1V

  • Output voltage Model X              0 to 4.6V, 0 to 6.4V

  • PCB material                             FR4

  • Freq. Response                          L.F. 2KHz

  • Max power consumption              0.25W

  • Storage temperature                  Between 40 to 70 [F]

  • Operating temperature                -5 to 125 [F] (-20 to 52°C) @ 95% RH

  • Low board DC voltage                 24VDC

  • Power source                            24V @ 20mA, filtered

  • Adjustment                               Via trimmers Zero and Span

  • Mounting                                  Four 0.125” (3.1mm) holes with center distance of 1.1"

  • Board dimensions                       1.650" * 2.83"

  • Manufactured                           100% in USA

Pricing



* The OEM products described herein, Prices, SKU#, P# are subject to change at any time without notice, including but not limited to products features, specifications, and designs.

Description

SKU #

Price

CONVERTER-420VX-24X current (4-20mA) to voltage 0 to 5 or 0 to 10V transducer. with terminal-block (6 positions). Model A

EID-CONVER-TER-420VX-24XA

$133.92

CONVERTER-420VX-24X current (4-20mA) to voltage 0 to -5 or 0 to -2.5V transducer. with terminal-block (6 positions). Model B

EID-CONVER-TER-420VX-24XB

$139.33

CONVERTER-420VX-24X current (4-20mA) to voltage 0 to 1 or 0 to 2V transducer. with terminal-block (6 positions). Model C

EID-CONVER-TER-420VX-24XC

$159.33

CONVERTER-420VX-24X current (4-20mA) to voltage 0 to -1 or 0 to -2V transducer. with terminal-block (6 positions). Model D

EID-CONVER-TER-420VX-24XD

$159.33

CONVERTER-420VX-24X current (4-20mA) to voltage 0 to 3 or 0 to 3.3V transducer. with terminal-block (6 positions). Model E

EID-CONVER-TER-420VX-24XE

$177.33

CONVERTER-420VX-24X current (4-20mA) to voltage 0 to -3 or 0 to -3.3V transducer. with terminal-block (6 positions). Model F

EID-CONVER-TER-420VX-24XF

$177.18

CONVERTER-420VX-24X current (4-20mA) to voltage -2.5 to 2.5 or -5 to 5V transducer. with terminal-block (6 positions).    Model G

EID-CONVER-TER-420VX-24XG

$179.91

CONVERTER-420VX-24X current (4-20mA) to voltage 2.5 to -2.5 or 5 to -5V transducer. with terminal-block (6 positions).    Model H

EID-CONVER-TER-420VX-24XH

$179.91

CONVERTER-420VX-24X current (4-20mA) to voltage -0.5 to 0.5 or -1 to 1V transducer. with terminal-block (6 positions).    Model I

EID-CONVER-TER-420VX-24XI

$179.91

CONVERTER-420VX-24X current (4-20mA) to voltage 0.5 to -0.5 or 1 to -1V transducer. with terminal-block (6 positions).    Model J

EID-CONVER-TER-420VX-24XJ

$179.91

CONVERTER-420VX-24X current (4-20mA) to voltage 0 to 4.6 or 0 to 6.39V transducer. with terminal-block (6 positions). Model X

EID-CONVER-TER-420VX-24XX

$186.91

Modified ABS Plastic Instrument enclosures option

EID-1593LBK

$7.97

Modified Translucent blue ABS Plastic enclosures option

EID-1593LTBU

$10.75

Din rail mounting mounting kit option

EID-1427DINCLIP

$4.242

  •
