CONVERTER – 420VX - current to voltage converter (transducer).

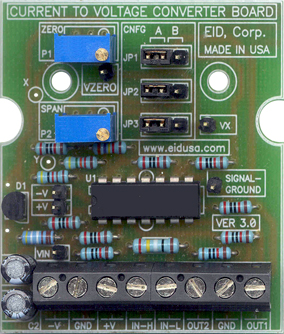

The CONVERTER-420VX board is designed to perform industrial standard current to voltage conversion (transducer). If used properly, it will eliminate the need for expensive board, which would otherwise be needed to carry out the same tasks.

The CONVERTER-420VX  is easy to install, setup and operate. If you want to do professional remote current measurement related functions, The CONVERTER-420VX offers the features you need. Mounted easily via two 0.125" mounting holes.

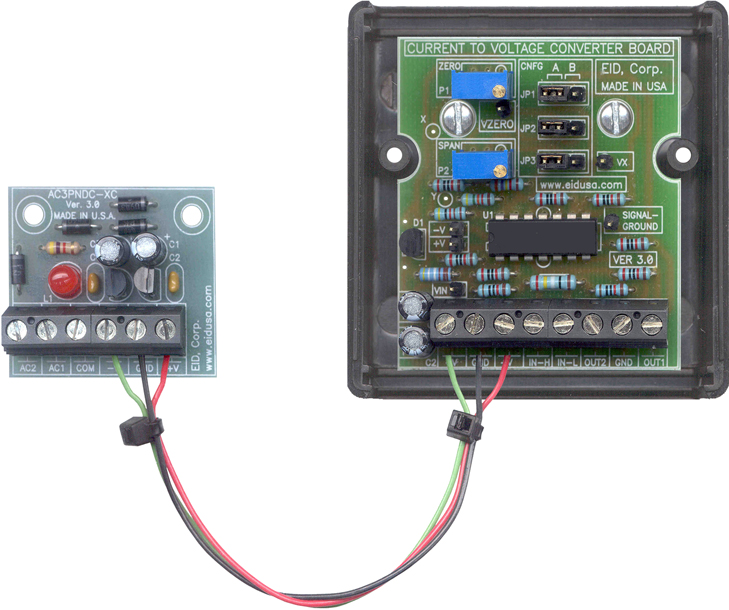

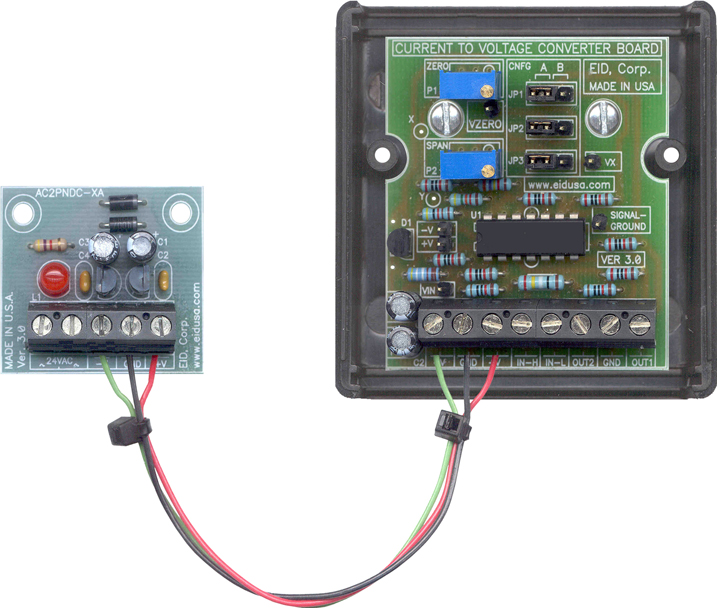

Simply connect the board to ±15V DC Power supply connect your current source 4-20mA to the input and our board will convert it to voltages (see table for different output ranges).

The current to voltage module the CONVERTER-420VX, converted and condition 4-20mA signals to DC voltage.

The CONVERTER-420VXtransducer it is typically used to convert current sensors to a stable constant-voltage source. A precision instrumentation amplifier and filter combination provides an accurate, conditioned ±10 or ±5 V output from a 4-20mA current input.

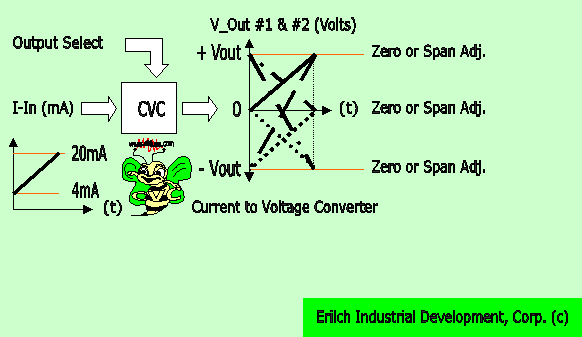

Accurate linear and efficient way to convert current standards 4 to 20mA, 0 to 20mA signals to industrial standards voltage 0 to 10V, 0 to -10V,  10 to -10V,  -10 to 10V,  -5V to 5V,  5V to -5V....

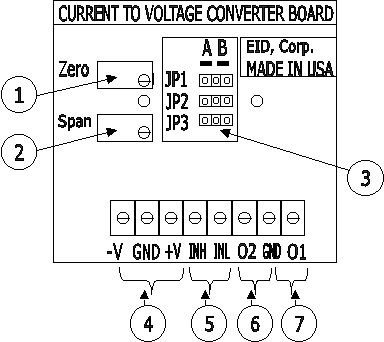

1. Zero calibration via multi-turn trimmer adjustment.

2. Span calibration via multi-turn trimmer adjustment.

3. Output configuration:

4. Power input +/-15VDC

5. Current input 4-20mA

6. Voltage Output 1 (See above table)

7. Voltage Output 2 (See above table)

Note: Voltage Output 1 is equal to Output 2

Mounting:

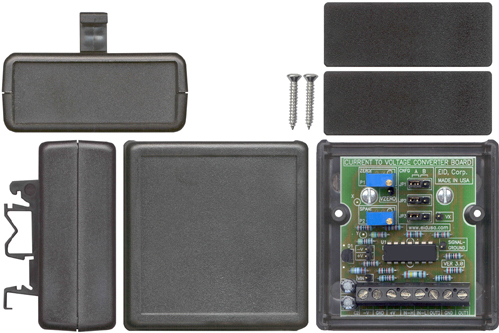

Board, shown above mounted in plastic enclosure (EID-1593 series enclosure) with din-rail-clip (optional).

Note:

Plastic enclosure and Din-Rail-clip are sold separately (for demonstration only).

CONVERTER-VMA420 Features

• Dual equal outputs

• Output Zero calibration via multi-turn trimmer adjustment.

• Output Span calibration via multi-turn trimmer adjustment.

• Power via +/-15V DC.

• Converts 4-20mA analog current to voltages

• Can be customized to accommodate your output voltage requirement.

• Industrial Standard input of 4-20mA makes the CONVERTER ideal for remote sensing applications.

• Linear voltage output.

• Output voltage rated up to +/-10VDC

Specifications

• Input current                            4-20mA

• Input Impedance                       250 Ohms

• Output voltage                         0 to 10, 0 to -10, -10 to 10, 10 to -10V, -5 to +5, +5 to -5VDC

• PCB material                             FR4

• Input Filter                               L.P.F. 2Hz

• Max power consumption              0.25W

• Storage temperature                  40 - 70   [F]

• Operating temperature                32 - 140 [F] (0 to 60°C) @ 95% RH

• Low board DC voltage                 +/-15VDC

• Power source                            +/-15VDC @ 45mA filtered

• Adjustment                              Via trimmers Zero and Span

• Mounting                                 Two 0.125” (3.1mm) holes with center distance of 1.1"

• Board dimensions                       1.985" * 2.21"

• Manufactured                           100% in USA
