ISOLATER-X2/4/6/8. Multi-channel signal isolation board, with per channel LED status indication.



The ISOLATER-X2/4/6/8 board is designed to perform two tasks:



A. Input to output signal isolation.



B. Convert AC signal to On/Off open collector output.



If used properly, it will eliminate the need for expensive filters and isolators which would otherwise be needed to carry out the same tasks. This board is ideally for driving relay, solenoid, damper and actuator.



ISOLATER-X2/4/6/8 is easy to install, setup and operate. If you want to do professional AC or DC voltage isolate on/off related functions, ISOLATER-X2/4/6/8 offers the features you need. Mounted easily via two (or four on 8 Ch.)  0.125" mounting holes.



Each individual channel on the board design to powered via industrial standard 24V DC or AC signals no need for external power supply.



Output for each isolated channel is open collector.



All wires to and from the board down via contently Terminal Blocks.



ISOLATER-X Where; X = 2, 4, 6 or 8 isolated channels



Options



You can purchase the ISOLATER-X2/4/6/8 with deferent input signal AC and DC i.e. 5V, 9V, 10V, 12V, 24V....

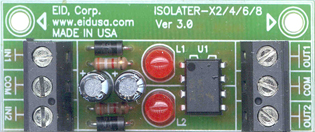

2 Ch. isolation board

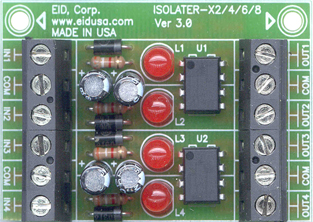

4 Ch. isolation board

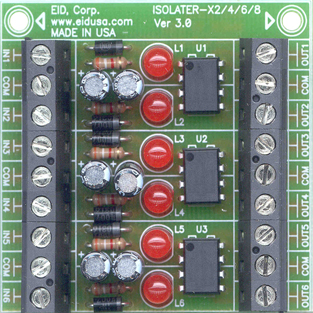

6 Ch. isolation board

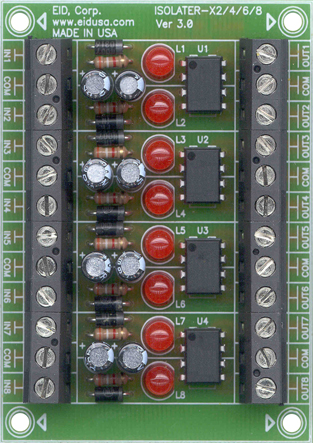

8 Ch. isolation board

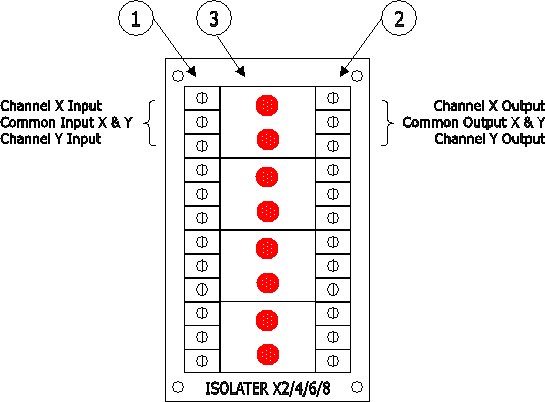

Figure A  above shown with maximum 8 Channels configuration and options



1. Four Groups of two channels Inputs: Input X (up) Input Y (down) Input X & Y common (center).

2. Four Groups of two channels Outputs: Output X (up), Output Y (down), output X & Y common (center).

3. Four Groups of two channels Power indicator LED: Channel X (up), Channel Y (down).

Where;

           X = Channels 1, 3, 5 & 7

           Y = Channels 2, 4, 6 & 8








ISOLATER-X2/4/6/8 Features



  • Signal input to output isolation

  • LED per channel signal indication

  • 24VAC or DC input signal isolation to open collector output

Specifications

  • PCB material                            FR4

  • Output Voltage                        Ref. to ground voltage

  • Max power consumption            0.1W

  • Storage temperature                40 - 70   [F]

  • Operating temperature              32 - 140 [F] (0 to 60°C) @ 95% RH

  • Low board DC voltage               24 [V]

  • Input resistance                      >4 [K Ohms]

  • Isolation                                 > 4 [KV]

  • Manufactured                         100% in USA



ISORELER-M4NX Features



  • Built-in relay on LED indicator for each relay.

  • Power source is chained on the board mechanically.

  • Also, designed to operate from 12VDC or 24VDC car battery (models B and C).

Specifications

  • PCB material                            FR4

  • Relay switch min. rating            110V/10A other values are available

  • Max power consumption            2W

  • Storage temperature                40 - 70   [F]

  • Operating temperature              32 - 140 [F] (0 to 60°C) @ 95% RH

  • Low board DC voltage               5, 12 or 24 [VDC]

  • Power source                          12V battery or 12VDC (Model B)

  • Relay on  indicator                    LED Green or Red

  • Wires Connections                    Via terminal-block

  • Manufactured                          100% in U.S.A.


Connection in a typical Industrial Installation





PROUDLY DESIGNED, FABRICATED and MADE IN THE U.S.A., all of our transducers and interface board are build with high quality, high grade components and since we are an OEM manufacturing company, as well as R&D facility, we can print your logo on the enclosures and PCBs. We customize the interface boards and transducers to fit your requirements and needs. Just drop us a line at: sales@eidusa.com or call us directly at (704) 366-HELP (4357).



Pricing



* Prices, P#, SKU# and colors are subject to change without notice.

Description

SKU #

Price

ISOLATER-X2 2 channel signal isolation board, with per channel LED status indication.

EID-ISO-LATER-02SI-XX24

$71.89

ISOLATER-X4 4 channel signal isolation board, with per channel LED status indication.

EID-ISO-LATER-04SI-XX24

$91.89

ISOLATER-X6 6 channel signal isolation board, with per channel LED status indication.

EID-ISO-LATER-06SI-XX24

$103.89

ISOLATER-X8 8 channel signal isolation board, with per channel LED status indication.

EID-ISO-LATER-08SI-XX24

$157.89

  •
