INTERFACER-PDM4. High-performance Industrial VAC or VDC quad Power Distribution board Module.



The INTERFACER-PDM4 board is designed to perform fused power distribution tasks:



Power Distribution: Distribute (Split) 24V DC or 24V AC to up to four (4) high end cameras or CCTV.



Distribute 10V, 12V, 24V, 28V and 48V (VAC or VDC) with individual per channel fuse protection, jumper select and LED power indication.



The board design to powered via industrial standard 24V AC/DC



Distribute 10V, 12V, 24V, 28V and 48V (VAC or VDC) with individual per channel output fuse protection, power on/off jumper select and LED power indication (VAC or VDC).



If used properly, it will eliminate the need for expensive power distribution and additional wires and equipment which would otherwise be needed to carry out the same tasks. Commonly utilized as the heart of cameras In-Line power source.



INTERFACER-PDM4 is easy to install, setup and operate. If you want to do professional voltage measurement and signal buffer related functions, INTERFACER-PDM4 offers the features you need. Mounted easily via two 0.125" mounting holes.





Supper Power Distribution Module, power input to up to 4 fused outputs, jumper select and LED power indication

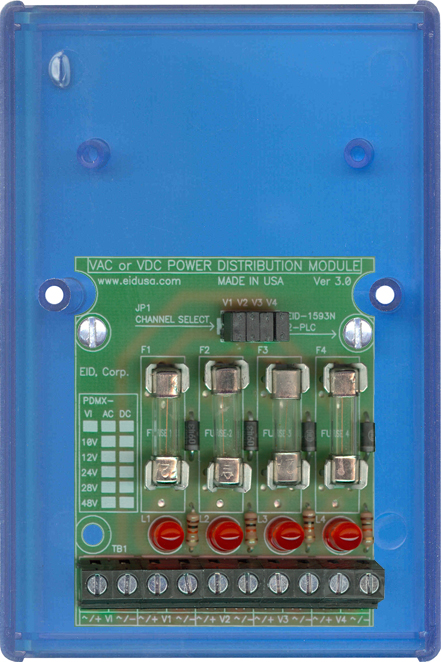

Figure A



1. Input Power: 10V, 12V, 24V, 28V and 48V (VAC or VDC) model depended

2. Output 1 (Power to to CCTV 1)

3. Output 2 (Power to to CCTV 2)

4. Output 3 (Power to to CCTV 3)

5. Output 4 (Power to to CCTV 4)

6. Channel power select (On/Off) switch via jumper

7. Channel corresponding protection fuse

8. Channel  LED Power Indicator






Mounting

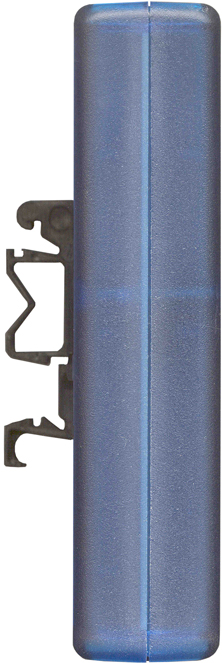

EID-1593NTBU Translucent blue ABS plastic instrument enclosure with Din-Rail mounting options, side (left) and inside mounting view (right).



Plastic enclosure and Din-Rail-clip are sold separately (for demonstration only).



The INTERFACER-PDM4 designed for high-performance industrial DIN Rail mount VAC or VDC power distribution for four (4) fused outputs CCTV power supply distributions 12VAC or 12VDC or 24VAC or 24VDC or 28VAC or 28VDC.






Specifications

  • PCB material                            FR4

  • Storage temperature                40 - 70   [F]

  • Operating temperature              32 - 140 [F] (0 to 60°C) @ 95% RH

  • Power source                          10V, 12V, 24V, 28V and 48V (VAC or VDC)

  • Manufactured                         100% in USA

Pricing



* Prices, P#, SKU# and colors are subject to change without notice.

Description

SKU #

Price

INTERFACER-PDM4 High accuracy quad channel power distribution. with individual per channel fuse protection, jumper select and LED power indication.

EID-INTERF-ACER-PDM4-XXXV

$75.93

  •
