POWER-DCAC2PNDC-X.  Low Current Dual Output VX & -VY Voltage DC power supply board/Regulator Interface board.



The POWER-DCAC2PNDC-X. is an electronics board that allows you to connect Low voltage 24VDC (17 to 36VDC)or 24VAC (17 to 32VAC) on one side of the board and get dual low current regulated voltages, VX VDC and -VY VDC  on the other side. Every industrial application designer should have a few of these boards handy. The boards will allow you to easily power all your Industrial Op-Amp transducers. The Terminal Block TB connector is included and makes it easy to use.



The POWER-DCAC2PNDC-X. board is designed to convert low current low voltages AC or DC to stabilize +/- V DC. If used properly, it will eliminate the need for expensive industrial power supplies, which would otherwise be needed to carry out the same task. Commonly utilized as the heart of low current DC Power Supply for Amplified and In-Line Amplified Transducer.



DCAC2PNDC-X is easy to install, setup and operate. If you want to  professionally power your HVAC products, POWER-DCAC2PNDC-X offers the features you need. Mounted easily via tow 0.125" mounting holes.



The board is designed to attenuate, filter and regulate low current low voltage AC or DC to stable +/-V DC.



For our line of transformers click Here









Standard Board Model XA                         Standard "Pigi Board" Model XB

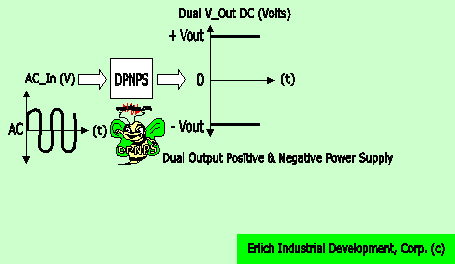

Single 24V AC or DC convert to low current X VDC and -Y VDC with common ground







Model XA



Figure A Model XA



1. Input 24VDC or 24VAC (~/+, ~/-) Voltage from PLC.

2. Output +/- V DC (-V, COM, +V), i.e +15VDC and -15VDC.

3. LED Power Indicator.



Model XB





Figure B Model XB

1. Input 24VDC or 24VAC (~/+) Voltage from PLC.

2. Input 24VDC or 24VAC ( ~/-) Voltage from PLC.

3. Output - V DC, i.e. -15VDC or -5VDC or -8VDC or -9VDC or -10V...

4. Output COM

5. Output + V DC, i.e. 15VDC or 5VDC or 8VDC or 9VDC or 10V...

3. LED Power Indicator.



Mounting Option



Simply snap the Din-Rail mounted enclosure into your NEMA 4 box (enclosure) for watertight applications





The board Model XA shown above mounted in EID-1593KBK black ABS plastic instrument enclosure with Din-Rail mounting options



Plastic enclosure and Din-Rail-clip are sold separately (for demonstration only).





"Pigi Board" Model BX, wires are options.



Note: Please be advised that plastic enclosure, mounting screws, are options and sold separately.





POWER-DCAC2PNDC-X Features



  • Up to 70mA output.

  • +/-5% voltage stability.

  • Power switch option.

  • Generally powered from any power source, Dual AC or DC, that is larger then 2 volts of the desired +/-VDC output voltage.

Specifications

  • Input voltage                           17-32V AC or DC

  • Relative Output voltage stability  +/-5%

  • Output current                         Up to 70mA, higher output current models are available.

  • PCB material                             FR4

  • Output Voltage                         +/- VDC (3 to 15VDC)

  • Max power consumption             .5W

  • Storage temperature                 40 - 70   [F]

  • Operating temperature               32 - 140 [F] (0 to 60°C) @ 95% RH

  • Low board DC voltage                30[V] max

  • Manufactured                           100% in USA

Pricing



* Prices, P#, SKU# and colors are subject to change without notice.



Description and SKU#

Price


24V DC/AC to 15VDC and -15VDC PS Low current Input 24VDC or 24VAC, outputs +15V /50mA & -15V /20mA. Model XA with 5 Terminal Blocks.



P# EID-POWER-PSD-DCAC2PNDC15XA









45.33







24V DC/AC to 5VDC and -5VDC PS Low current Input 24VDC or 24VAC, outputs +5V /40mA & -5V /20mA. Model XA with 5 Terminal Blocks.



P# EID-POWER-PSD-DCAC2PNDC5XA









47.52







24V DC/AC to 15VDC and -5VDC PS Low current Input 24VDC or 24VAC, outputs +15V /50mA & -5V /25mA. Model XA with 5 Terminal Blocks.



P# EID-POWER-PSD-DCAC2PNDC155XA









54.33







24V DC/AC to 15VDC and -10VDC PS Low current Input 24VDC or 24VAC, outputs +15V /50mA & -10V /25mA. Model XA with 5 Terminal Blocks.



P# EID-POWER-PSD-DCAC2PNDC1510XA









54.33







24V DC/AC to 10VDC and -10VDC PS Low current Input 24VDC or 24VAC, outputs +10V /50mA & -10V /25mA. Model XA with 5 Terminal Blocks.



P# EID-POWER-PSD-DCAC2PNDC10XA









54.33







24V DC/AC to 9VDC and -9VDC PS Low current Input 24VDC or 24VAC, outputs +9V /50mA & -9V /25mA. Model XA with 5 Terminal Blocks.



P# EID-POWER-PSD-DCAC2PNDC9XA









54.33







24V DC/AC to 7.5VDC and -7.5VDC PS Low current Input 24VDC or 24VAC, outputs +7.5V /50mA & -7.5V /25mA. Model XA with 5 Terminal Blocks.



P# EID-POWER-PSD-DCAC2PNDC7X5XA









54.33







24V DC/AC to 20VDC and -8VDC PS Low current Input 24VDC or 24VAC, outputs +20V /50mA & -8V /25mA. Model XA with 5 Terminal Blocks.



P# EID-POWER-PSD-DCAC2PNDC208XA









54.33







24V DC/AC to 12VDC and -12VDC PS Low current Input 24VDC or 24VAC, outputs +12V /50mA & -12V /25mA. Model XA with 5 Terminal Blocks.



P# EID-POWER-PSD-DCAC2PNDC12XA









54.33







24V DC/AC to 15VDC and -15VDC PS Low current Input 24VDC or 24VAC, outputs +15V /50mA & -15V /20mA. Model XB



P# EID-POWER-PSD-DCAC2PNDC15XB









48.15





24V DC/AC to 5VDC and -5VDC PS Low current Input 24VDC or 24VAC, outputs +5V /40mA & -5V /20mA. Model XB



P# EID-POWER-PSD-DCAC2PNDC5XB









52.47





24V DC/AC to 15VDC and -5VDC PS Low current Input 24VDC or 24VAC, outputs +15V /50mA & -5V /25mA. Model XB



P# EID-POWER-PSD-DCAC2PNDC155XB









57.33





24V DC/AC to 15VDC and -10VDC PS Low current Input 24VDC or 24VAC, outputs +15V /50mA & -10V /25mA. Model XB



P# EID-POWER-PSD-DCAC2PNDC1510XB









57.33





24V DC/AC to 10VDC and -10VDC PS Low current Input 24VDC or 24VAC, outputs +10V /50mA & -10V /25mA. Model XB



P# EID-POWER-PSD-DCAC2PNDC10XB









57.33





24V DC/AC to 9VDC and -9VDC PS Low current Input 24VDC or 24VAC, outputs  +9V /50mA & -9V /25mA. Model XB



P# EID-POWER-PSD-DCAC2PNDC9XB









57.33





24V DC/AC to 7.5VDC and -7.5VDC PS Low current Input 24VDC or 24VAC, outputs +7.5V /50mA & -7.5V /25mA. Model XB



P# EID-POWER-PSD-DCAC2PNDC7X5XB









57.33





24V DC/AC to 20VDC and -8VDC PS Low current Input 24VDC or 24VAC, outputs +20V /50mA & -8V /25mA. Model XB



P# EID-POWER-PSD-DCAC2PNDC208XB









57.33





24V DC/AC to 12VDC and -12VDC PS Low current Input 24VDC or 24VAC, outputs +12V /50mA & -12V /25mA. Model XB



P# EID-POWER-PSD-DCAC2PNDC12XB









57.33





  •
