The Line Type Transformers 171 series. Isolation - plug in (115VAC - 115VAC) transformers.

Key Features:

• Primary 115VAC, 50/60 Hz., Secondary 115VAC

• Provides circuit isolation.

• Electrostatic shield between primary & secondary.

• Hi-pot tested to 2 KV RMS.

• Circuit breaker in primary.

• Standard 3-wire, grounded plug & receptacle.

• Input (primary) connected to 5 foot long cord & standard North American plug (NEMA 5-15P).

• Output (secondary) connected to 1 foot long 3-wire, standard North American grounded receptacle (NEMA 5-15R).

• North American Mark of Safety - C UL & UL listed

• Remember - These units do NOT convert line frequency

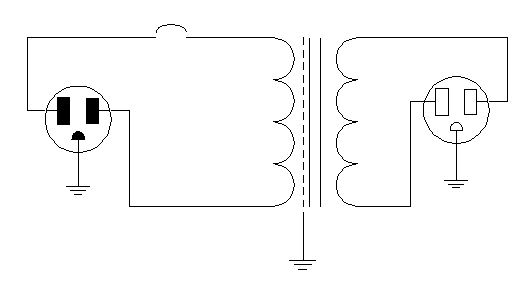

Mechanical & Schematic Data:

  ^•
