Plastic Instrument Enclosures (EID-1598 Series) Flame Retardant ABS Plastic Version

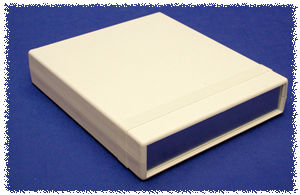

1598BBBK

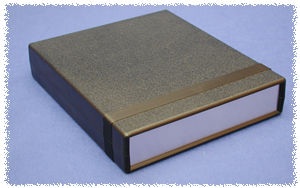

1598BBGY
Black
Gray

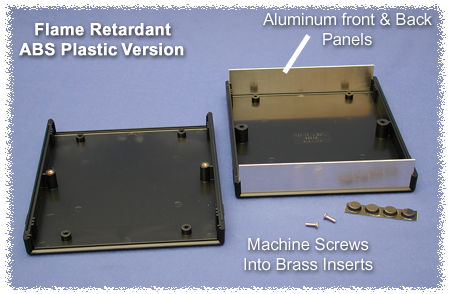

Features and benefits:

  • Desk top electronic instrument enclosure, ideally suited for mounting printed circuit boards.
  • Molded from flame retardant ABS plastic (material carries a UL flammability rating of 94V-0).
  • Designed to meet IP54.
  • Two sets of vertical 1.5 mm (0.062”) P.C. board guides are molded into case halves front and rear.
  • Front and rear panels are 1.6 mm (0.064”) brushed aluminum with paper on one side.
  • Cases halves are secured with M3 x 0.5” x 10 mm (0.39”) Philips machine screws threaded into tapped integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required.
  • Integral horizontal P.C. card mounts on Eurocard centers.
  • Stocked in matte textured black and gray.
  • EMI/RFI shielded cases are stocked in black (see table).
Part Number

Color

1-9

10-49

50-99

.100-1K

Units

Length

Width

Enclosure Height (Clam Shell)

EID-1598BBK
EID-1598BGY
Black
Grey


Inches

5.28

5.31

1.96

mm

134

135

50

EID-1598ABK
EID-1598AGY
Black
Grey


Inches

6.18

3.70

1.42

mm

157

94

36

EID-1598EBK
EID-1598EGY
Black
Grey


Inches

6.30

6.30

3.38

mm

160

160

86

EID-1598BBBK
EID-1598BBGY
Black
Grey


Inches

7.05

6.06

1.42

mm

179

154

36

EID-1598CBK
EID-1598CGY
Black
Grey


Inches

7.09

6.10

2.04

mm

180

155

52

EID-1598DBK
EID-1598DGY
Black
Grey


Inches

7.09

8.11

2.52

mm

180

206

64

EID-1598FBK
EID-1598FGY
Black
Grey


Inches

9.84

6.30

1.58

mm

250

160

40

EID-1598GBK
EID-1598GGY
Black
Grey


Inches

9.84

6.30

3.00

mm

250

160

76

EID-1598HBK
EID-1598HGY
Black
Grey


Inches

11.02

7.87

1.58

mm

280

200

40

EID-1598JBK
EID-1598JGY
Black
Grey


Inches

11.02

7.87

3.00

mm

280

200

76



Notes:

  • All Dimensions in inches & mm

Features - ABS Version



  •
