Commercial Electrical Enclosure C-Box Series: C-Box  Screw Cover with Knockouts Series Enclosures - NEMA 1







                           C-Box  Screw Cover with Knockouts Series Enclosures - NEMA 1



Application:



  • Designed for general purpose indoor commercial use as a junction, pull or switch box.

Standards:

  • UL-50 Type 1

  • CSA Type 1

  • Complies with

    • NEMA Type 1

    • IEC 60529, IP29

Construction:

  • Formed and spot welded from 16 or 14 gauge steel depending on size.

  • Flat steel covers fastened with plated steel screws.

  • Keyhole slots permit cover to be lifted off without removing screws entirely.

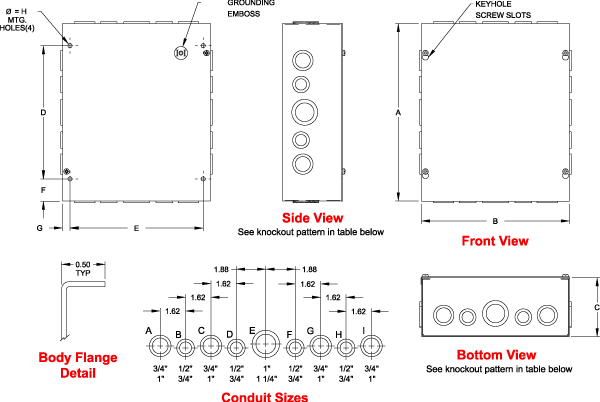

  • Easily removed knockouts on all 4 sides (see drawings for sizes and locations).

  • Through holes in back for wall mounting.

  • Grounding location embossed in body.

Finish:

  • Enclosure and cover are finished in ANSI 61 gray powder coating.

Accessories:

  • N/A





Part No.

Overall
Dimensions





Knockout Pattern Sides



Knockout Pattern
Top & Bottom

Ship
Wt.
lbs.

A

B

C

D

E

F

G

H

EID-CSKO443

4

4

3

2

3

0.88

0.50

B - C

0.28

A - B

2

EID-CSKO663

6

6

3

3

5

1.50

0.50

B-C-D

0.28

B-C-D

3

EID-CSKO863

8

6

3

5

5

1.50

0.50

F-G-H-I

0.28

B-C-D

3

EID-CSKO16143

16

14

3

13

13

1.50

0.50

B-C-D-E-F-G-H

0.28

B-C-D-E-F-G-H

12

EID-CSKO18143

18

14

3

15

13

1.50

0.50

A-B-C-D-E-F-G-H-I

0.28

B-C-D-E-F-G-H

13

EID-CSKO20143

20

14

3

17

13

1.50

0.50

A-B-C-D-E-F-G-H-I

0.28

B-C-D-E-F-G-H

13

EID-CSKO444

4

4

4

2

3

0.88

0.50

B - C

0.28

A - B

2

EID-CSKO644

6

4

4

3

3

1.50

0.50

B-C-D

0.28

A - B

3

EID-CSKO664

6

6

4

3

5

1.50

0.50

B-C-D

0.28

B-C-D

3

EID-CSKO864

8

6

4

5

5

1.50

0.50

F-G-H-I

0.28

B-C-D

5

EID-CSKO884

8

8

4

5

7

1.50

0.50

F-G-H-I

0.28

F-G-H-I

5

EID-CSKO1084

10

8

4

7

7

1.50

0.50

F-G-H-I

0.28

F-G-H-I

6

EID-CSKO10104

10

10

4

7

9

1.50

0.50

F-G-H-I

0.28

C-D-E-F-G

6

EID-CSKO1284

12

8

4

9

7

1.50

0.50

C-D-E-F-G

0.28

F-G-H-I

7

EID-CSKO12104

12

10

4

9

9

1.50

0.50

C-D-E-F-G

0.28

C-D-E-F-G

8

EID-CSKO12124

12

12

4

9

11

1.50

0.50

C-D-E-F-G

0.28

C-D-E-F-G

9

EID-CSKO16124

16

12

4

13

11

1.50

0.50

B-C-D-E-F-G-H

0.28

C-D-E-F-G

12

EID-CSKO18124

18

12

4

15

11

1.50

0.50

A-B-C-D-E-F-G-H-I

0.28

C-D-E-F-G

12

EID-CSKO18184

18

18

4

15

17

1.50

0.50

A-B-C-D-E-F-G-H-I

0.28

A-B-C-D-E-F-G-H-I

16

EID-CSKO24244

24

24

4

21

23

1.50

0.50

C-D-E-F-G

0.28

C-D-E-F-G

33

EID-CSKO666

6

6

6

3

5

1.50

0.50

B-C-D

0.28

B-C-D

4

EID-CSKO886

8

8

6

5

7

1.50

0.50

F-G-H-I

0.28

F-G-H-I

6

EID-CSKO1086

10

8

6

7

7

1.50

0.50

F-G-H-I

0.28

F-G-H-I

7

EID-CSKO10106

10

10

6

7

9

1.50

0.50

F-G-H-I

0.28

C-D-E-F-G

8

EID-CSKO12106

12

10

6

9

9

1.50

0.50

C-D-E-F-G

0.28

C-D-E-F-G

9

EID-CSKO12126

12

12

6

9

11

1.50

0.50

C-D-E-F-G

0.28

C-D-E-F-G

10

EID-CSKO16126

16

12

6

13

11

1.50

0.50

B-C-D-E-F-G-H

0.28

C-D-E-F-G

13

EID-CSKO16166

16

16

6

13

15

1.50

0.50

B-C-D-E-F-G-H

0.28

B-C-D-E-F-G-H

16

EID-CSKO18126

18

12

6

15

11

1.50

0.50

A-B-C-D-E-F-G-H-I

0.28

C-D-E-F-G

14

EID-CSKO18186

18

18

6

15

17

1.50

0.50

A-B-C-D-E-F-G-H-I

0.28

A-B-C-D-E-F-G-H-I

19

EID-CSKO24186

24

18

6

21

17

1.50

0.50

A-B-C-D-E-F-G-H-I

0.28

A-B-C-D-E-F-G-H-I

26

EID-CSKO24246

24

24

6

21

22.5

1.50

0.75

A-B-C-D-E-F-G-H-I

0.44

A-B-C-D-E-F-G-H-I

37

EID-CSKO30246

30

24

6

27

22.5

1.50

0.75

A-B-C-D-E-F-G-H-I

0.44

A-B-C-D-E-F-G-H-I

45

EID-CSKO36246

36

24

6

33

22.5

1.50

0.75

A-B-C-D-E-F-G-H-I

0.44

A-B-C-D-E-F-G-H-I

57

EID-CSKO12128

12

12

8

9

11

1.50

0.50

C-D-E-F-G

0.28

C-D-E-F-G

12

EID-CSKO16168

16

16

8

13

15

1.50

0.50

B-C-D-E-F-G-H

0.28

B-C-D-E-F-G-H

20

EID-CSKO24248

24

24

8

21

22.5

1.50

0.75

A-B-C-D-E-F-G-H-I

0.44

A-B-C-D-E-F-G-H-I

44

EID-CSKO202010

20

20

10

17

19

1.50

0.75

A-B-C-D-E-F-G-H-I

0.28

A-B-C-D-E-F-G-H-I

37

EID-CSKO242410

24

24

10

21

22.5

1.50

0.50

A-B-C-D-E-F-G-H-I

0.44

A-B-C-D-E-F-G-H-I

52

EID-CSKO302010

30

20

10

27

18.5

1.50

0.75

A-B-C-D-E-F-G-H-I

0.44

A-B-C-D-E-F-G-H-I

59

EID-CSKO362410

36

24

10

33

22.5

1.50

0.75

A-B-C-D-E-F-G-H-I

0.44

A-B-C-D-E-F-G-H-I

75



  •
